SkyWire Cables
$7Description
Included
Resources
SkyWire Deluxe cables are hand crafted with genuine TITAN RIG Premium wire and Molex pins. The wire is 18AWG, silver-coated, low oxygen copper wire to ensure the effortless flow of electrical power to your components.
The jacket of these cables is super thick at 2.3mm outer diameter and is a rich, deep black with no printing on the sides.
These cables look super nice even without sleeving and are the perfect length for builds in the SkyReach 4 MINI, SkyReach 4 TINY, and SkyReach 4 Transform layouts.
SkyWire Standard cables are a lower cost version with printed cable wire. They are the same length and have the same functionality.

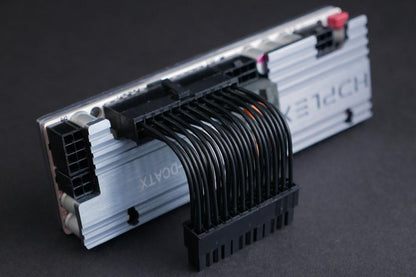

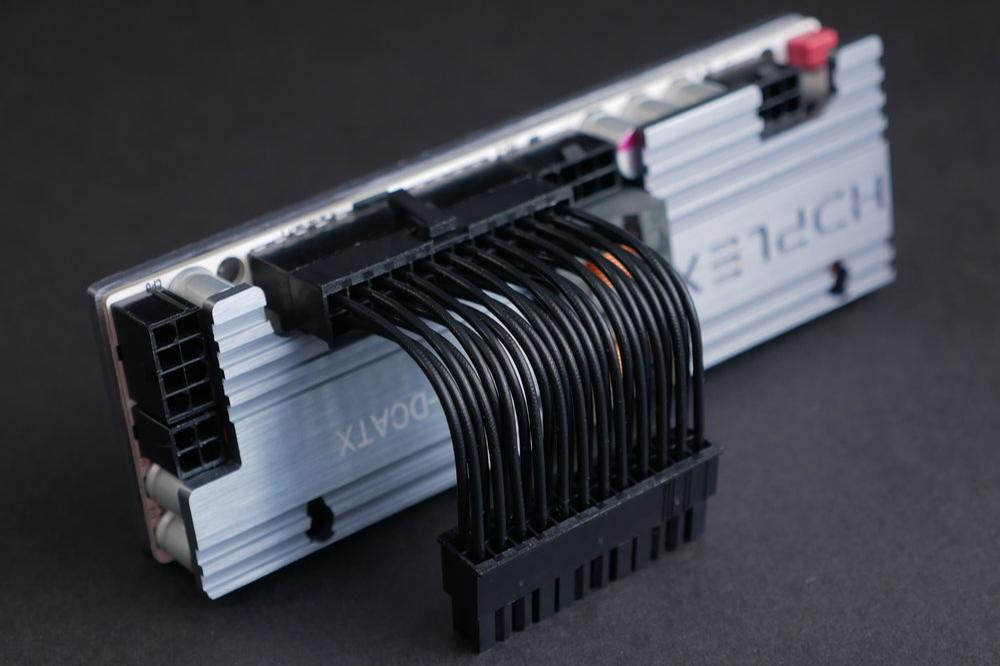

24 Pin ATX
Cable length (measured between connectors) is 2.5" which makes it compatible with motherboards that match the ASUS Z390i, ASROCK Z390, and ASROCK X299e 24 Pin Layouts. v1.0-2.1 HDPLEX 400 units use the same cable.

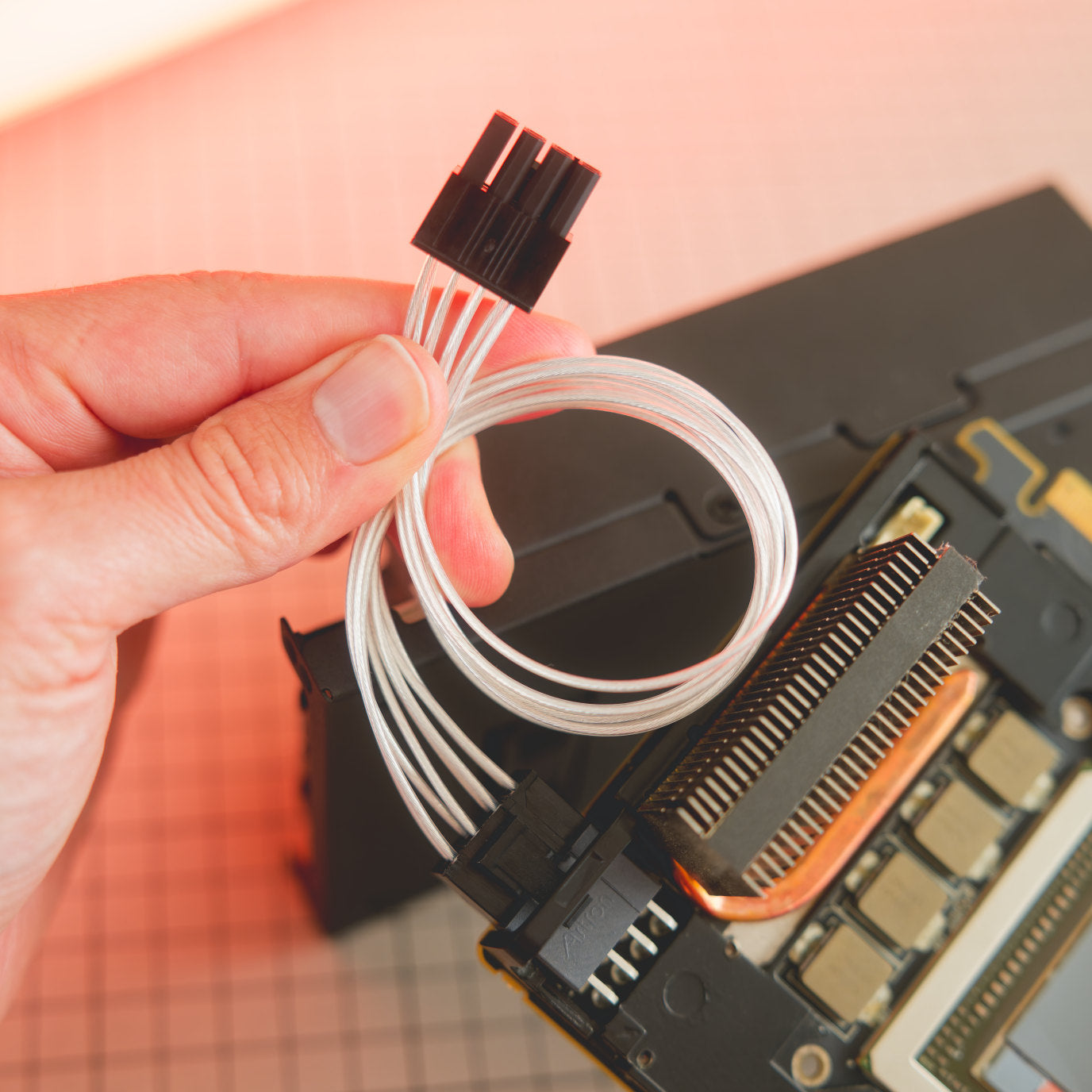

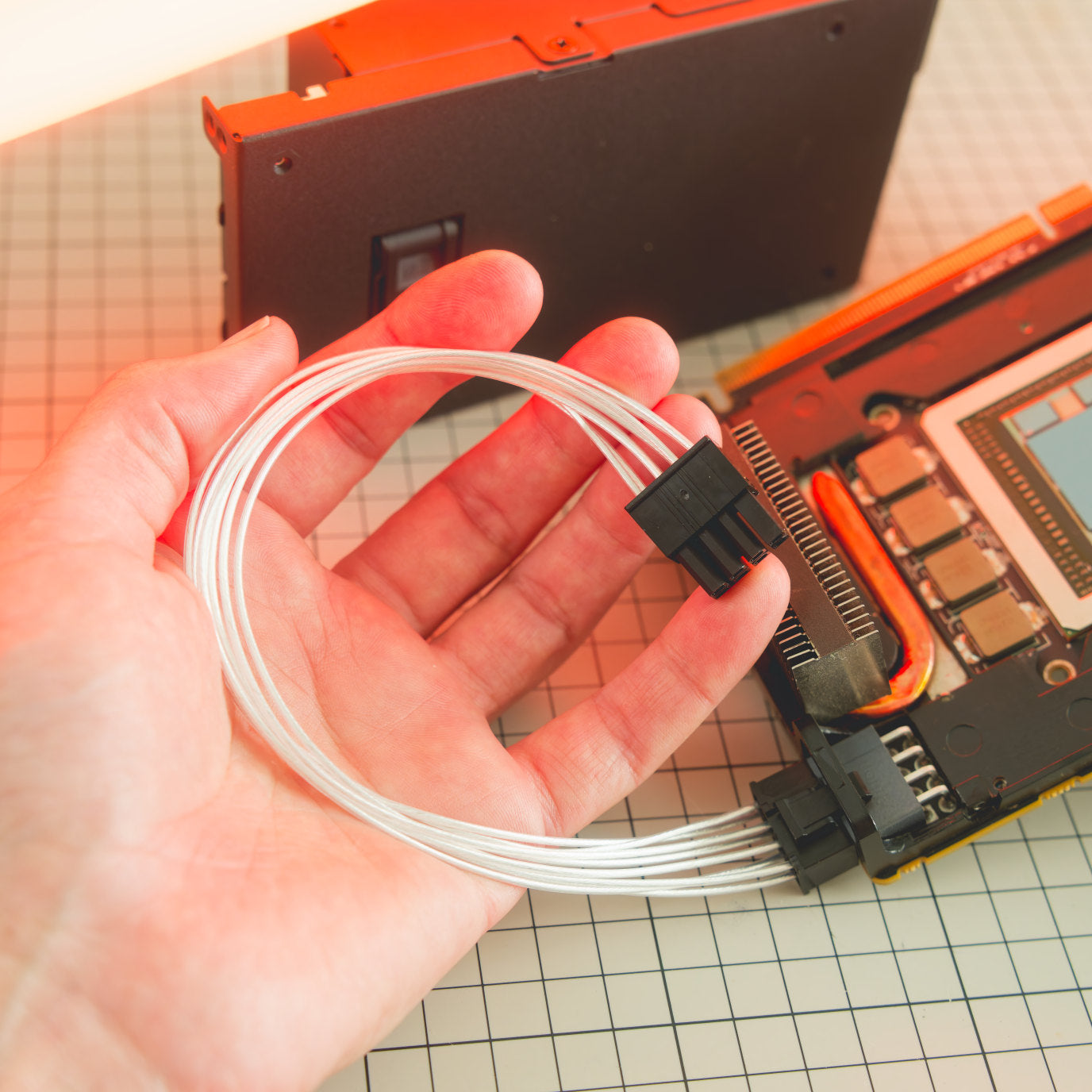

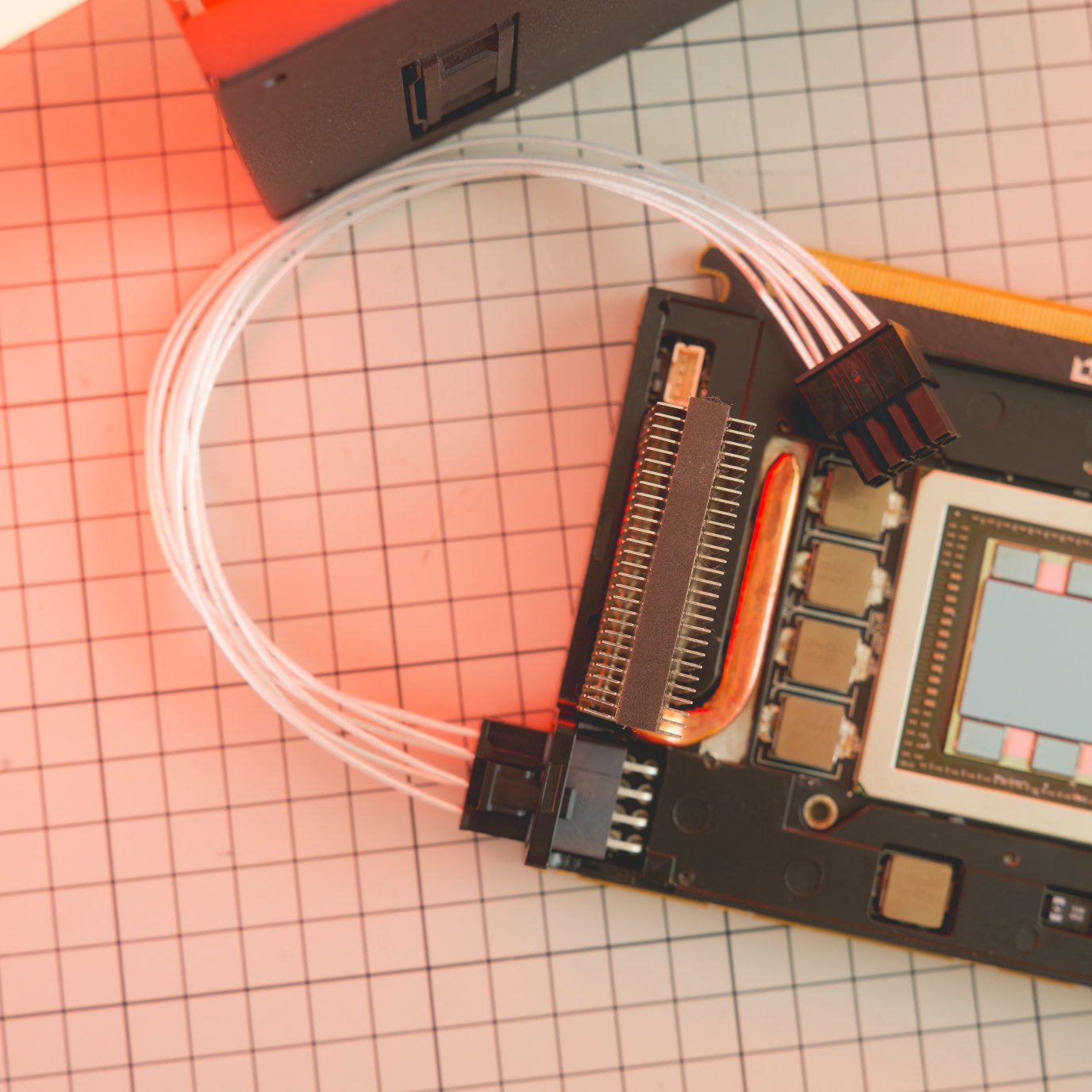

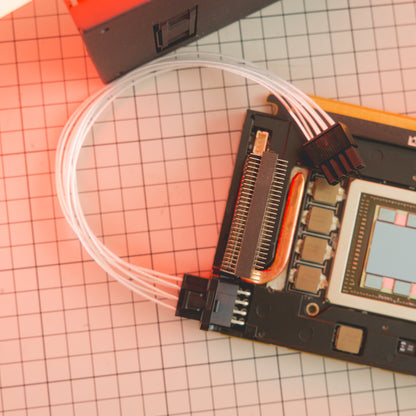

8 Pin GPU
Cable length (measured between connectors) is 11.5" which makes it an excellent fit with all 8 and 6 pin GPUs that currently fit in the S4 MINI. Motherboard choice should be irrelevant. Using this 2.0+ cable on prior HDPLEX units will cause a fire, so check your version!!!

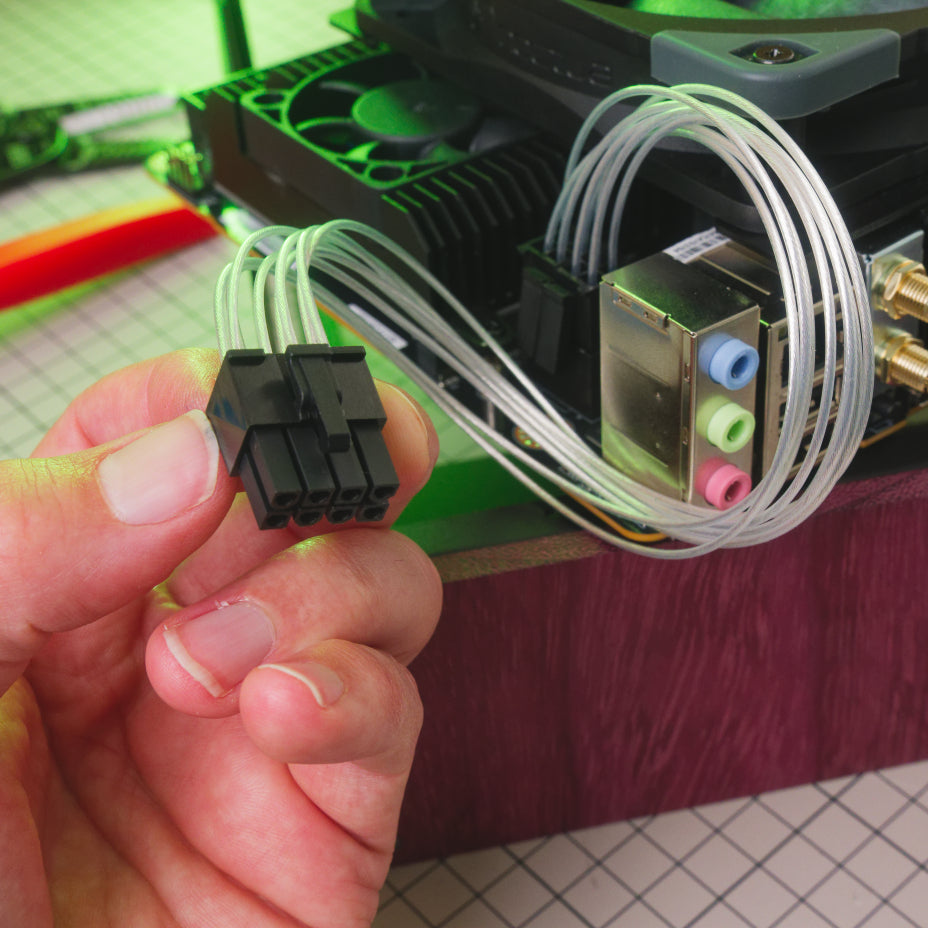

8 Pin CPU
Cable length (measured between connectors) is 9.5" which makes it a nice fit for the S4 MINI with most mini-ITX motherboard layouts. v1.0-2.1 HDPLEX 400 units use the same cable.

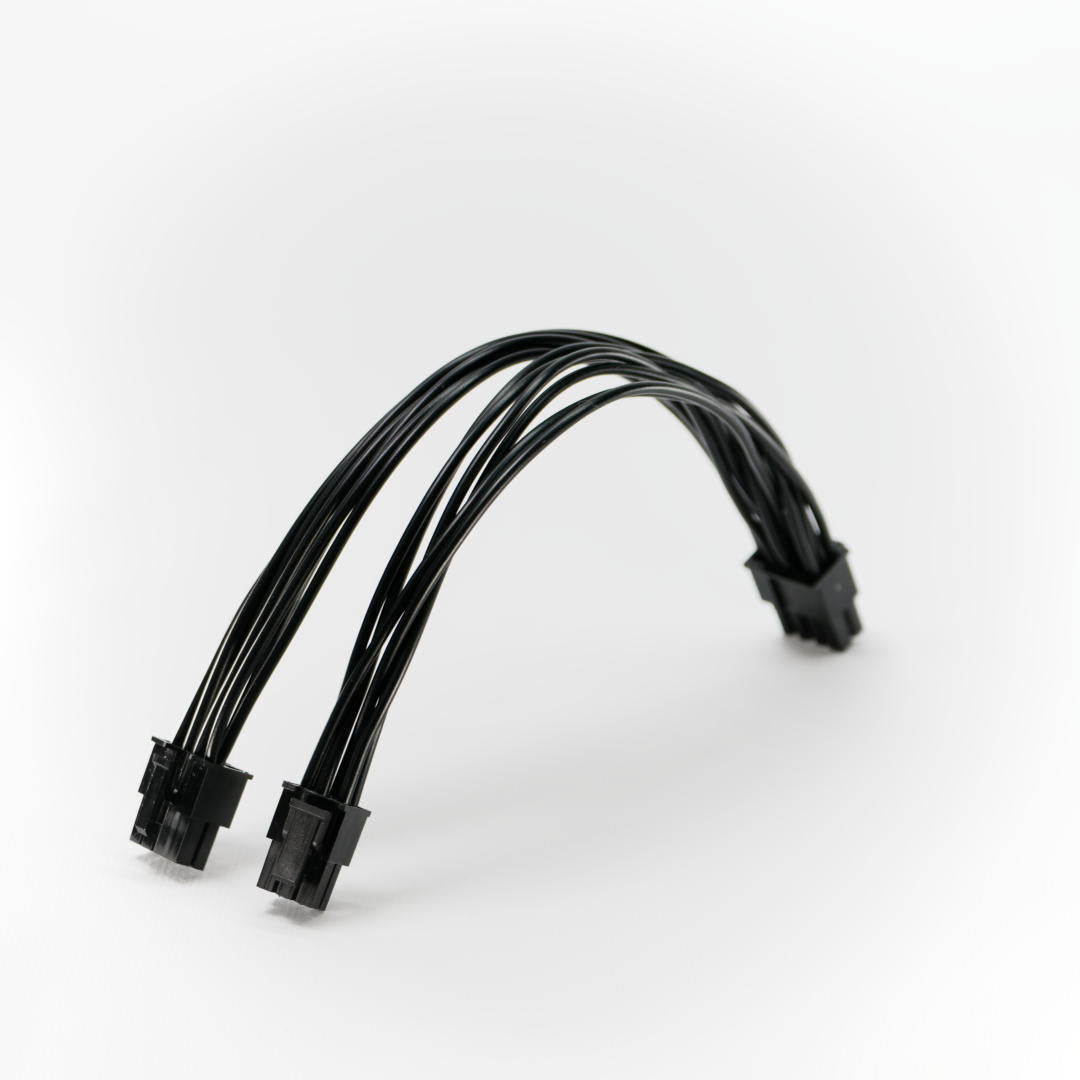

8 + 6 Pin 2070 Super
Cable length (measured between connectors) is 5" which makes it an excellent fit for the Zotac 2070 Super GPU. Motherboard choice should be irrelevant.
In the box: SkyWire Cables
Warranty: NFC Systems Limited Warranty
Shipping: NFC Systems Shipping Guidelines
Community: NFC subforum on SFF.Network
